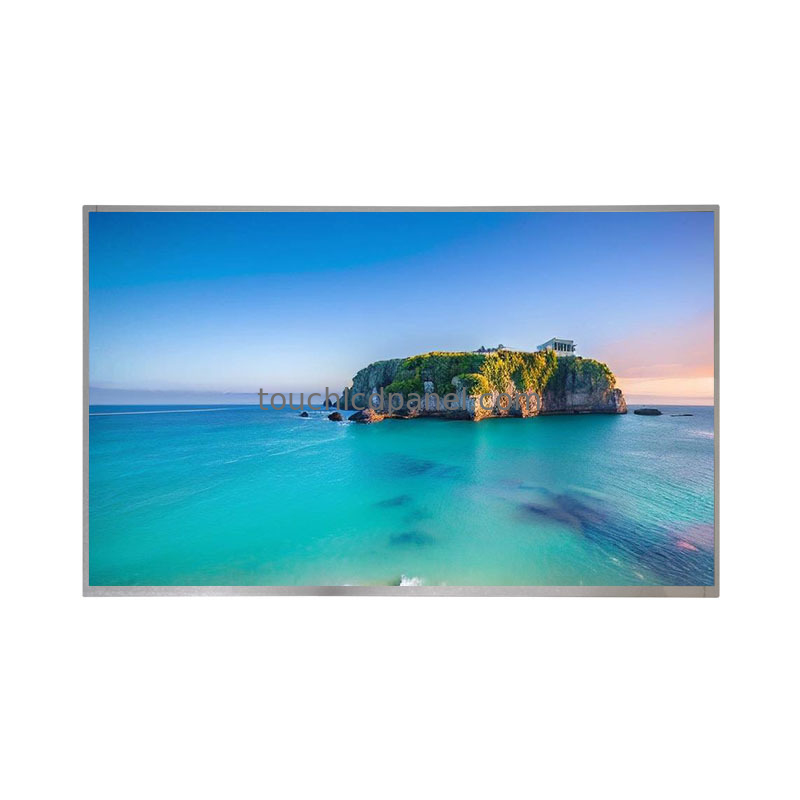

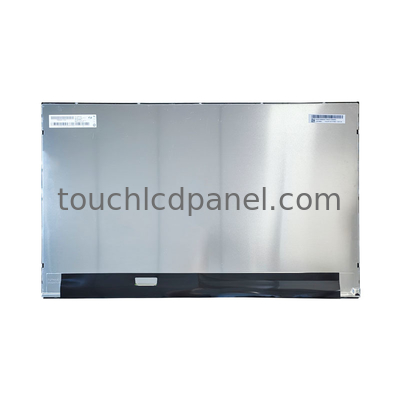

27 Inch AUO IPS LCD Panel P270HVN02.0 1920x1080 300 Nits

Tutte le categorie

Sovrapposizione a prova di esplosione

monitor dello schermo attivabile al tatto

Regolatore di tocco

Contattaci

Miss. Lin

lily.lb@touchlcdpanel.com

86+ 188 0261 2095

86+ 188 0261 2095

Contattaci ora

27 Inch AUO IPS LCD Panel P270HVN02.0 1920x1080 300 Nits

Marchio:	AUO
Numero di modello:	P270HVN02.0
MOQ:	10pcs
prezzo:	To Be Negotiated
Dettagli dell' imballaggio:	Carton Box Or Wood Case
Condizioni di pagamento:	T/T

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Certificazione:

RoHS / TCO 7.0 Compliance

Tipo di pannello:

Rapporto di contrasto:

Led Life Time:

40000 ore

Temp operativa:

0 ~ 50 ° C

Luminanza:

300cd/㎡

Colore di supporto:

Colori da 16,7 m (input dati a 8 bit RGB)

Peso:

2180G

Misurare:

27 pollici

Supply Ability:

1000pcs Per Day

Evidenziare:

27 inch AUO IPS LCD panel

P270HVN02.0 LCD panel 1920x1080

IPS LCD panel 300 nits

Descrizione del prodotto

27" AUO LCD Panel P270HVN02.0 with 1920x1080 Pixels, 300 Nits, and 40,000 Hours LED Lifetime

Product Description

P270HVN02.0 is a 27 inch FHD color a-Si TFT-LCD Module. The display supports the FHD-1920(H) x 1080(V) screen format and 16.7M colors (RGB 8-bit data input). The light source of this TFT-LCD module is W-LED. All input signals are 2-channel LVDS interface and this module doesn't contain a driver for backlight.

The LCD Panel utilizes In-Plane Switching (IPS) technology to deliver excellent color accuracy and wide viewing angles, making it ideal for applications that require precise image reproduction.

The electrical interface of this LCD panel is Dual Channel LVDS, providing a reliable connection for seamless data transmission between the panel and the device it is integrated with.

Key Features

Long LED Lifetime: 40,000 hours
High Luminance: 300cd/㎡
FHD Resolution: 1920 X 1080 Pixels
Panel Type: IPS (IPS Display Panel)
Electrical Interface: Dual Channel LVDS
ESD (Electro Static Discharge): both contact discharge and air discharge supports ±15KV, class B

Technical Specifications

Electrical Interface	Dual Channel LVDS
Power Consumption	19.53 Watt
Operating Temperature	0 ~ 50 °C
Contrast Ratio	3000
Luminance	300cd/㎡
Resolution	1920 X 1080 Pixels
Backlight Unit	4 Strings And 15pcs LED Of One String
Panel Type	IPS
Weight	2180g
Physical Size	613.6 (H) X 356.85 (V) X 10 (D)mm

Applications

The AUO LCD Panel P270HVN02.0 is a versatile display solution suitable for digital signage, medical equipment, industrial displays, and other devices requiring a high-quality screen display panel.

With an active area of 597.6 x 336.15 mm, this LCD panel offers a spacious display area perfect for showcasing detailed content with clarity and precision. The energy-efficient design consumes only 19.53 watts of power during operation, making it a sustainable choice for eco-conscious consumers.

27 Inch AUO IPS LCD Panel P270HVN02.0 1920x1080 300 Nits 1
